应用与详细资料：/Purpose and introduction

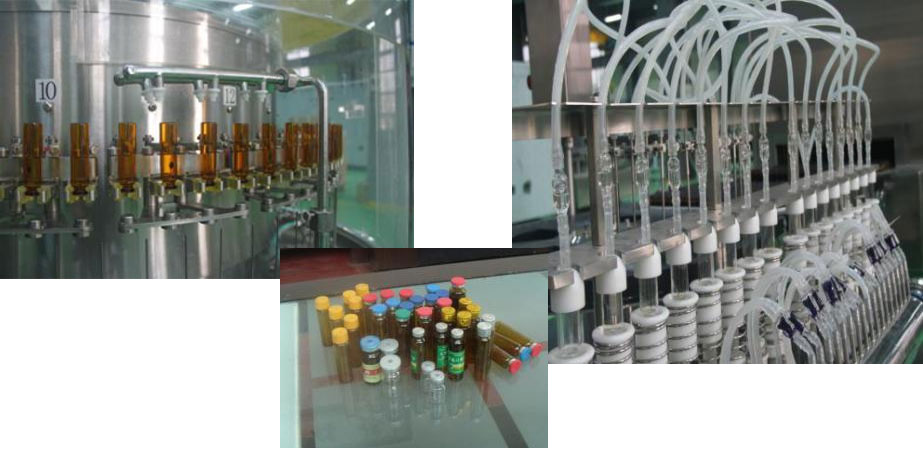

内服液洗烘灌轧联调线由双面多普勒彩超波洗瓶机、隊道式制热 再循环过滤除菌烤箱、内服液罐装轧盖机等组成的，是和于 5-30ml 等差异规 格内服液瓶的产生。可完整对医疗药品产生中安瓿瓶淋水、多普勒彩超波拆洗、冲水、充 气、烘干设备过滤除菌、蒸发、罐装、轧盖等工艺设计工作步骤的联调执行。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

性能:/characteristic

◆洗瓶机所采用机戒手夹瓶，用于多个标准的可乐瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用于水蒸汽喷针循环往复跟踪软件读取策略，擦洗结果好，业绩再生能源。并有针架防会抖设施，升高喷针读取小瓶的精准度度，限制断针的问题形成；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一整个水蒸气压缩空气管、喷针完完全全自主离婚，防止了交差水污染，遵循GMP规范标准规定；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前还可以加装缓存块，有保護螺母，避免碎瓶用途Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶选用全局进口商同时带，衔接拨块卸料服用液，正常运行平衡正规In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘干箱进行红外线热处理管，不锈钢装饰管吗热处理管两层热处理温度因素一致性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆罐装轧盖机可选装配瓷质泵、不锈钢装饰管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆罐装无瓶止灌，无瓶不轧盖功能键。Pieces filling without bottle filling, no bottle no rolling function.◆整线利用PLC总保持、直流变频空调器、触屏屏保持技术设备，操作平稳安全。触屏屏可展现各单人的操作动态，各保持点的进水管、标准气压、传热系数、温湿度等展现，各开关按钮动态和问题率展现，问题率自己诊治和问题率进行分析及在排除方式。使另一出产步骤完成会工业自动化保持，联线有三机自动化控制动平衡机安装，做到出产义均安全。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.给出投资者的需用，还可供加装音响：According to the needs of customers, but also available for selection:◆simens、斯耐德、三菱PLC、台达等知名品牌控制机系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气重压、水温表及彩超波的强度、尘埃什么意思离子、风力再线论文检测、報警、收录、网页打印程序。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌室隔離器装置。Mixer ORABS, CRABS, aseptic isolator system.

技木参数指标：technical parameters

选用型号规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装精确Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合理率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
