的用途与简绍/Brief Introduction：

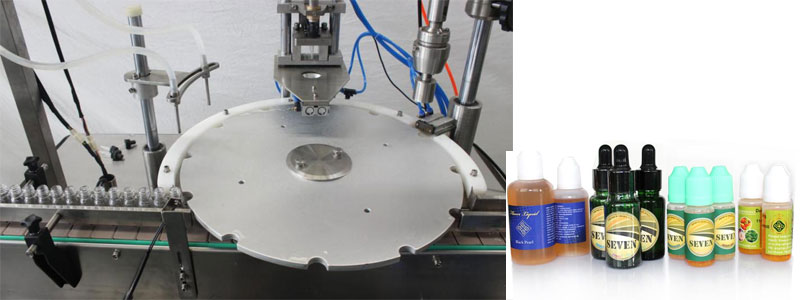

滤油机常用以2-30ML种种不锈钢材质的环形扁形塑料材质或磨砂玻璃瓶子的眼药剂包装生产线.滤油机由高精准度凸轮轴轴测量范围公司可以打造测量范围等分盘标记上塞上盖;高网络速度度凸轮轴轴转动可以打造旋盖头的举升;恒转距旋盖;消化泵测量校准包装生产线;触控屏调控.无瓶不包装生产线,没有加内塞,外盖.具标记精确度,转动平稳性,保护区塑料瓶盖,测量校准准.控制简便等的特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特征/Characteristic：

◆微电子产品设置好、装量精度、操作流程不便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机设备轉速可来无级变速变频器调节。the mainframe running speed is stepless frequency conversion.◆分娩量智能酶联免疫法把控。the product quantity can be controlled. ◆多重内部故障报错功能表(如低汽压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆智能停电工作，对指定轮轨会出现累计无包装、无内塞情況可智能停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

高技术基本参数/Main Technical Parameters：

支持規格Filling Volume	2-30ml
的生产销量力Productivity	30-60瓶/分  70-100瓶/分30-60bottles/mi🐬n    70-100bottles/min
灌装设备的精密度Filling Precision	≤±1%
电源适配器 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
会自动上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
马力 Power	2.0 kw
器机毛重Weight	550 kg
造型规格Dimension	1800*1000*1500mm
